Märklin 76493

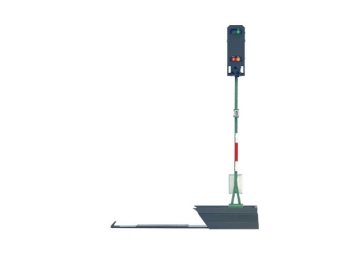

H0 76493 Color Light Home Signal. Prototype: German Federal Railroad (DB) standard design entry signal. 3 settings: "Stop" - red (Hp0), "Proceed" - green (Hp1) and "Proceed Slowly" - green/yellow (Hp2). Model: The signal has an integrated electronic signal circuit and one separate signal mfx decoder. Control of all functions can be done in the digital system with the signal decoder included with the signal, or in conventional operation with a 72760 control box. The signal decoder can be installed under C Track or under the layout. For digital operation, the configuration and the address can be assigned and tested before the installation of the signal. Connections for controlling train movements and for 1 distant signal are on the signal decoder. Height without base 78.0 mm /3-1/16". An appropriate distant signal by itself is item no. 76480 and 76481, or a distant signal on the same mast with other signals, item no. 76495 and 76496. Other items in Signals | 6 April 2024 |
